Code : 1632441512010-en

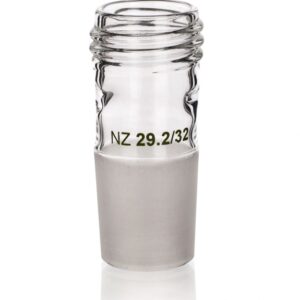

Inserts or adapters allow the connection of apparatus parts with variously wide grinding openings.
Grinds can only have a few sizes (their dimensions are determined by the standard), therefore

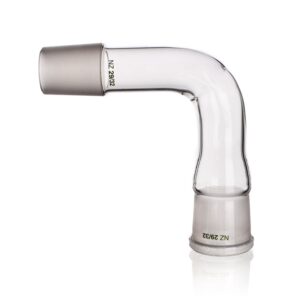

only a few types of adapters are needed. Extensions and elbows are used to connect different parts of the apparatus.
| SJ | Počet kusů | d1 (mm) | d2 (mm) | l (mm) | Code |
|---|---|---|---|---|---|
| 5-13 | 10 | 8 | 8 | 120 | 8124 |
| 7-16 | 10 | 10 | 10 | 120 | 8124 |
| 10-19 | 10 | 13 | 13 | 120 | 8124 |
| 12-21 | 10 | 16 | 16 | 120 | 8124 |
| 14-23 | 10 | 18 | 18 | 120 | 8124 |
| 19-26 | 10 | 22 | 22 | 150 | 8124 |
| 24-29 | 10 | 28 | 28 | 150 | 8124 |
| 29-32 | 10 | 34 | 34 | 150 | 8124 |
| 34-35 | 10 | 40 | 40 | 150 | 8124 |
| 40-38 | 10 | 46 | 46 | 150 | 8124 |
| 45-40 | 10 | 50 | 50 | 150 | 8124 |
| 50-42 | 10 | 56 | 56 | 150 | 8124 |
| 60-46 | 10 | 70 | 70 | 200 | 8124 |
| 71-51 | 10 | 80 | 80 | 200 | 8124 |
| 85-55 | 10 | 95 | 95 | 200 | 8124 |
| 100-60 | 10 | 110 | 110 | 200 | 8124 |
